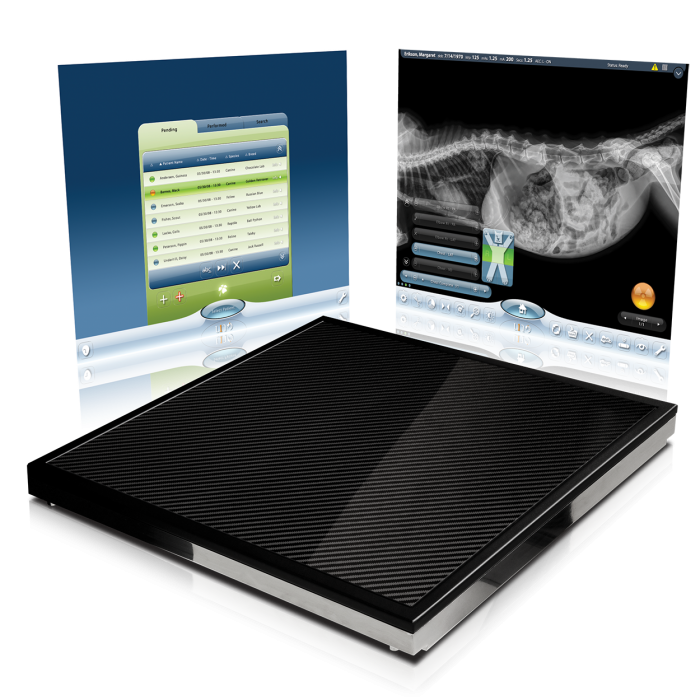

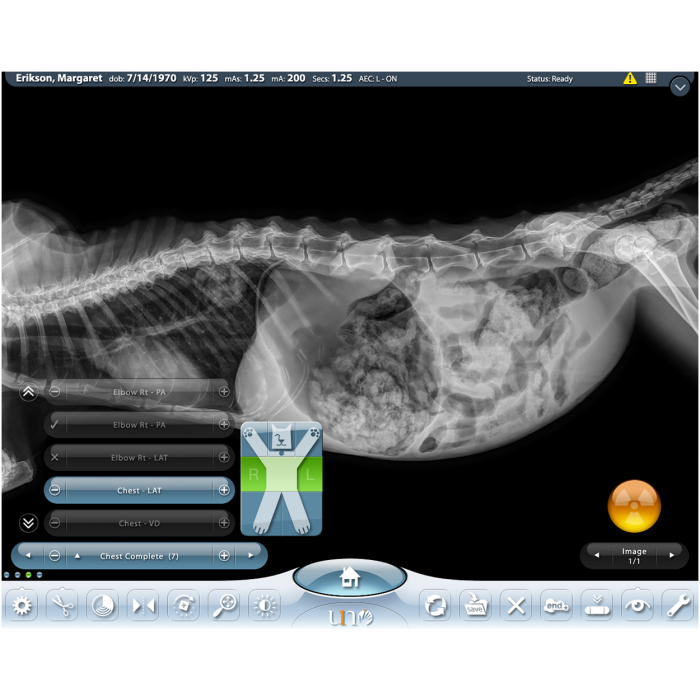

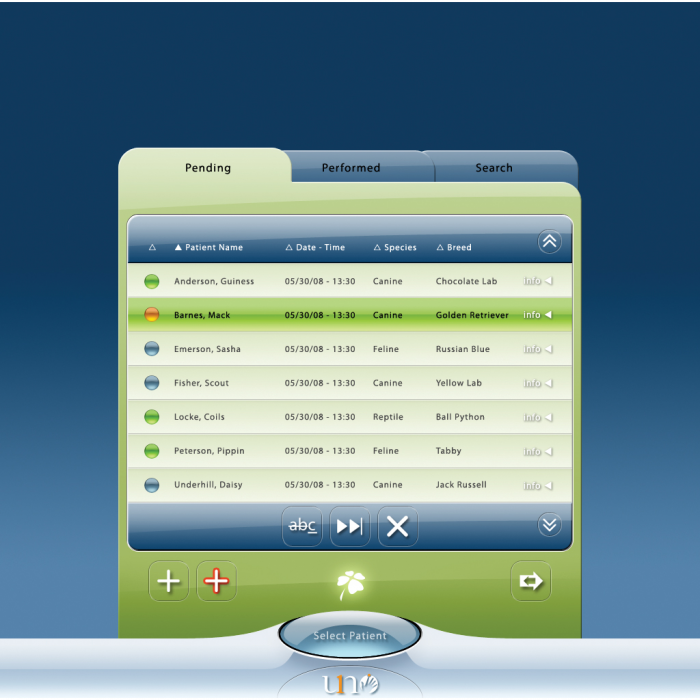

Cuattro Dr HD

Cesium High Definition Digital Radiography

17×17” HD Detector Specifications:



Sensor:

• Panel – Single substrate amorphous silicon active TFT/diode array
• Scintillator – Direct deposition CsI:Tl
• Pixel Matrix – 3556 × 4320
• Pixel Pitch – 100 μm


Electronics:

• Amplifiers – Low noise ASICs with user selectable gains
• ADC – 16 bit
• Image Transfer Time Wired – 500 ms; Wireless: 3000 ms
• On Board Memory – 1 GB DDR3, 4 GB SDHC card

Mechanical:

• Size – ISO 4090 for 35 cm × 43 cm (17” × 17”) cassette size
• Active Area – True 355 mm × 432 mm
• External Dimensions – 384 mm (w) × 460 mm (l) × 15 mm (h)
• Weight – 3.8 kg (8.4 lbs)
• Housing Carbon – fiber front & back

 Communications:

• Status Display – OLED display with WiFi, battery, and sensor indicators
• Wireless Data I/F – 802.11n WiFi standard
• Wired Data I/F – GigE via optional power & communication tether
• X-ray I/F – Integrated X-ray trigger control Automatic Exposure Detection

Imaging Performance

• Limiting Resolution – 5 cy/mm
• Typical MTF – 70% (1 cy/mm), 40% (2 cy/mm), 15% (4 cy/mm) for RQA5
• Typical DQE – 75% (0 cy/mm), 60% (1 cy/mm), 40% (3 cy/mm) for RQA5


Environmental

• Temperature: 10 – 35 °C operating
• Humidity: 30 – 70 % RH operating (non-condensing)


Power

• Battery – Rechargeable battery, 53.3 Wh
• Battery Charger – External two bay charger 100-240 V AC 50/60 Hz
• Interface & Power Unit – Optional XRpad IPU with external power supply 100-240 V AC, GigE, and X-ray I/F

 14×17” Wireless HD Detector Specifications:

Sensor

• Panel – Single substrate amorphous silicon active TFT/diode array
• Scintillator – Direct deposition CsI:Tl
• Pixel Matrix – 3556 × 4320
• Pixel Pitch – 100 μm

Electronics

• Amplifiers – Low noise ASICs with user selectable gains
• ADC – 16 bit
• Image Transfer Time Wired – 500 ms; Wireless: 3000 ms
• On Board Memory – 1 GB DDR3, 4 GB SDHC card

 Mechanical

• Size – ISO 4090 for 35 cm × 43 cm (14” × 17”) cassette size
• Active Area – True 355 mm × 432 mm
• External Dimensions – 384 mm (w) × 460 mm (l) × 15 mm (h)
• Weight – 3.8 kg (8.4 lbs)
• Housing Carbon – fiber front & back

 Communications

• Status Display – OLED display with WiFi, battery, and sensor indicators
• Wireless Data I/F – 802.11n WiFi standard
• Wired Data I/F – GigE via optional power & communication tether
• X-ray I/F – Integrated X-ray trigger control Automatic Exposure Detection

Imaging Performance

• Limiting Resolution – 5 cy/mm
• Typical MTF – 70% (1 cy/mm), 40% (2 cy/mm), 15% (4 cy/mm) for RQA5

• Typical DQE – 75% (0 cy/mm), 60% (1 cy/mm), 40% (3 cy/mm) for RQA5

 Environmental

• Temperature – 10 – 35 °C operating
• Humidity – 30 – 70 % RH operating (non-condensing)

Power

• Battery – Rechargeable battery, 53.3 Wh
• Battery Charger – External two bay charger 100-240 V AC 50/60 Hz
• Interface & Power Unit – Optional XRpad IPU with external power supply  100-240 V AC, GigE, and X-ray I/F
